Weatherproof 24V DC 60W LED Dali Dimmable Driver - HCP-52233 - Hav

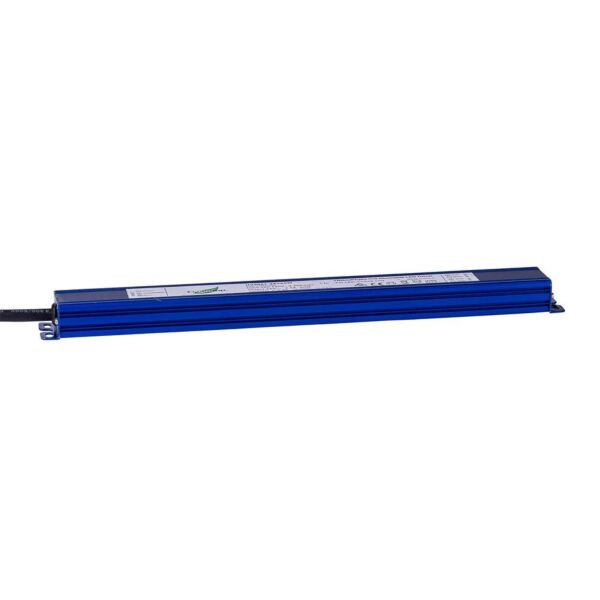

Weatherproof 24V DC 60W LED Dali Dimmable Driver - HCP-52233
Availability:
In stock
SKU
HAV-HCP-52233
A LED Driver is an electrical device; used to power a light-emitting diode (LED); that protects LEDs by stabilizing the quantity of incoming electrical voltage and current to make sure they don't surpass the maximum voltage rating.
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.
Without the proper driver; the LED may become too hot and unstable; therefore causing poor performance or failure.
Specifications
- Dali Dimmable LED Driver
- High Power Factor 0.95
- Flex and Plug Included
- IP rating: IP66
- Input Voltage: 240V AC
- Output Voltage: 24V DC Constant Voltage
- Output Power: 60W
- Recommended Maximum Load = 48W
- 5 Years Replacement Warranty
Dimensions
- Length: 300mm
- Width: 32mm
- Height: 20mm
Click to view technical specification:
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.
Without the proper driver; the LED may become too hot and unstable; therefore causing poor performance or failure.
Specifications
- Dali Dimmable LED Driver
- High Power Factor 0.95
- Flex and Plug Included
- IP rating: IP66
- Input Voltage: 240V AC
- Output Voltage: 24V DC Constant Voltage
- Output Power: 60W
- Recommended Maximum Load = 48W
- 5 Years Replacement Warranty
Dimensions
- Length: 300mm
- Width: 32mm
- Height: 20mm
Click to view technical specification:
