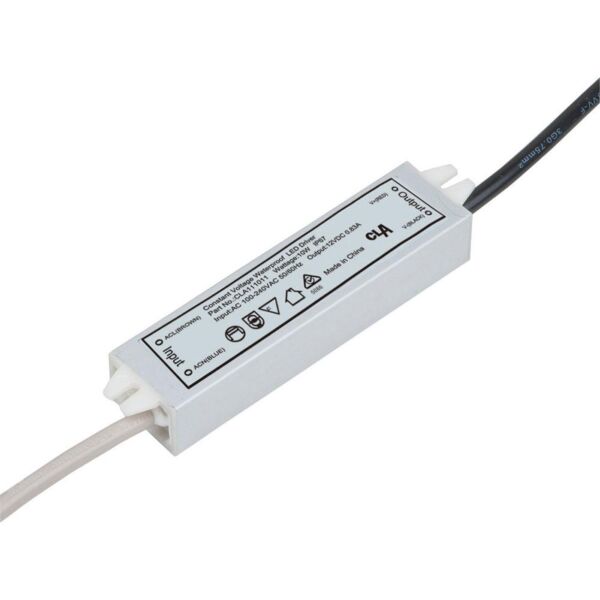

Weather Proof 12V LED Driver 10W IP67 - CLA111011 - Cla
was
A$29.57
Special Price
A$26.88
Weather Proof 12V LED Driver 10W IP67 - CLA111011
Availability:
In stock
SKU
CLA-CLA111011
- 12V DC constant voltage
- Input voltage: 170-265V AC 50/60Hz
- Output voltage: 12V DC
- Short circuit; overload; over temperature protection
- Ambient temp: -30 to 50 degreeC
- Flex & plug included
- Maximum recommeneded distance to light source: 10m
For CLA115011 / CLA1110011 / CLA1115011 and CLA112011
These drivers are manufactured with a split cable format for carrying increased current for easier connection of multiple loads
Note
- Minimum load is 10% of rated power
- Maximum load is 80% of rated power
Each driver can be used
- At full load capacity by connecting all cables to one terminal block
- With any combination of split cables (as long as the minimum and maximum loads below are adhered to)
- To minimise the occurrence of voltage drops; the recommended maximum distance from the light source is 10m
Click to view technical specification:
- Input voltage: 170-265V AC 50/60Hz
- Output voltage: 12V DC
- Short circuit; overload; over temperature protection
- Ambient temp: -30 to 50 degreeC
- Flex & plug included
- Maximum recommeneded distance to light source: 10m
For CLA115011 / CLA1110011 / CLA1115011 and CLA112011
These drivers are manufactured with a split cable format for carrying increased current for easier connection of multiple loads
Note
- Minimum load is 10% of rated power
- Maximum load is 80% of rated power
Each driver can be used
- At full load capacity by connecting all cables to one terminal block
- With any combination of split cables (as long as the minimum and maximum loads below are adhered to)
- To minimise the occurrence of voltage drops; the recommended maximum distance from the light source is 10m
Click to view technical specification:
