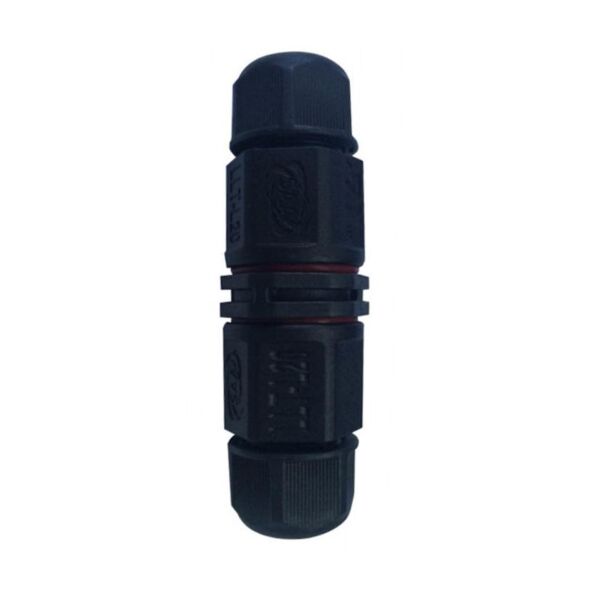

Waterproof Connector - CONN001 - Cla

Features
Double Waterproof Connector With Silicon Gel Gasket 380V IP68

Specifications:
- Copper Cabling max - 4mm braidedW
- Screw Terminal Material: Brass with Ni Plated
- High Temperature rating: -40 degreeC ~ +105 degreeC
- Silicon Gel gasket
- IP rating: IP68
- Nylon glass fiber reinforced (PA66 + GF V0)
- 12 Months replacement warranty
- Current Rating: 25A
- Voltage Rating: 380V/AC
- Contact Resistance: 100Mohm at 500V
- Breakdown Voltage: 1500V/1Min 5mA
- Circular Cabble Diameter: 6.5mm - 10.0mm
- * If using flat sheathed cable; connector ends need to be sealed with waterproof compound.

Click to view technical specification:
