Square 17W / 27W / LED Bunker With Sensor Grey / Tri-Colour - AT5812/TRI/CF - Atl
was
A$190.56
Special Price
A$173.24
Square 17W / 27W / LED Bunker With Sensor Grey / Tri-Colour - AT5812/TRI/CF
Availability:
In stock
SKU
ATL-AT5812/TRI/CF
Features

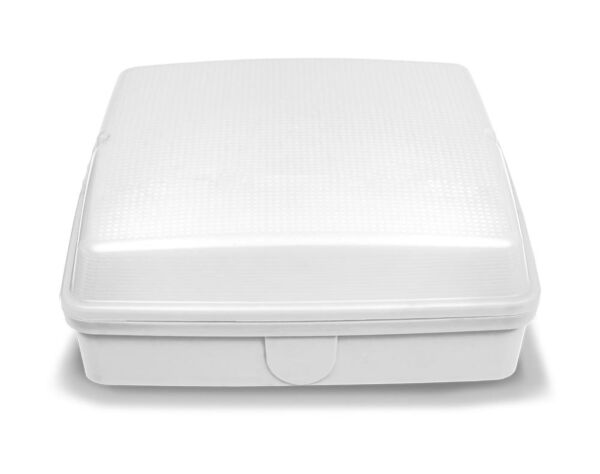

The AT5812 Wall / Ceiling Light has been designed to offer a versatile all-in-one product for exterior walls or ceilings. Brightness levels can be selected from low; medium to high brightness with a wattage switchable dip switch from 17W to 27W depending on the desired brightness.
Also incorporates Trio technology; the added option of changing the colour temperature output can be achieved via a dip switch. Switchable colour temperature allows for the choice of a Warm White; Cool White or Daylight colour temperature appearance.
IP65 rated; meaning these can also be installed in wet areas such as outdoors; bathrooms; toilets and laundries.
These bunker lights have a PC diffuser. Ideal for commercial lighting applications; Carparks; Corridors; Store rooms etc.
Selectable power consumption 27W to 17W. Insect resistance seal.
Lamp Specifications
- Lamp Colour Temperature: 3000K /4000K / 5000K (Interchangeable)
Wattage
17W Lumens
- Warm White 3000K - 1355 Lumens
- Cool White 4000K - 1440 Lumens
- Daylight 5000K - 1420 Lumens
27W Lumens
- Warm White 3000K - 2575 Lumens
- Cool White 4000K - 2825 Lumens
- Daylight 5000K - 2735 Lumens
Fixture Specifications
- Input Voltage: 240V
- Beam: 120 degree
- Dimmable: No
- Material: Polycarbonate
- IP Rating: IP65
- Warranty Period: 7 YR
Dimensions
- Diffuser: 275mm x 275mm
- Base: 200mm x 200mm
- Height: 102mm
Sensor
Adjust sensor sensitivity according to location; the detection distance of low sensitivity could be only 2m and high sensitivity could be up to 16m for a larger room.
Time
The time that the luminaire stays on at full power once motion is detected.
The minimum time is 10sec plus or minus 3sec; the maximum is 12min plus or minus 1min.
(The luminaire will stay on while the sensor detects movement.)
Lux
The amount of ambient light at which the luminaire will switch on the lights if movement is detected. When set to the "sun" position (max) the luminaire will work in both daytime and night.
When set to the "3" position (min) the luminaire will only work when the ambient light is 3 LUX (twilight).
Click to view technical specifications:
