Smart Relay Mech - 21322 - Bri
was
A$46.94
Special Price
A$42.67

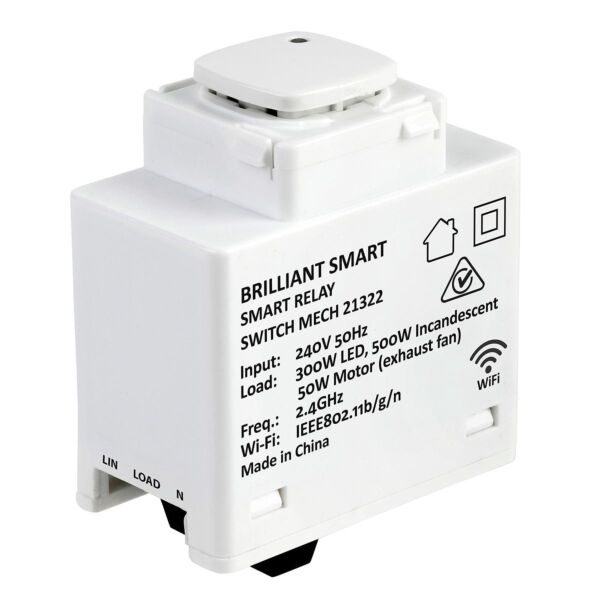

Smart Relay Mech - 21322
Availability:
In stock
SKU
BRI-21322
Applications
- Connects to any lighting/switch
- indoor only
- Group lights; so they can be switched on or off at the one time
- Create scenes using IFTTT; so lights come on based on certain behaviour;
- ie: when movement is detected via a sensor;the lights turn on automatically
Smartify your on/off switch to allow remote operation from anywhere
- Make your on/off switch or exhaust fan smart by converting your current switch to our Smart relay module
- Fits conveniently into the existing switch plate
- Perfect for new or retro-fit installations
- Slots seamlessly into HPM? HPM Excel Life?; Clipsal? and Vynco? branded wall plates
- Control from anywhere via app or voice control
- Build schedules and timing to automate your home
- Create virtual automation looping without the hassle of installing long cable runs*
- Soft start for improved lamp life
- Connects to other BrilliantSmart devices and other compatible products
- Overheat and over-current protection
- Manual push button is in perfect sync with app
Specifications
- Operating Voltage: 240V / 50Hz
- Class: Class II (2)
- Maximum Load: 300W LED / 500W incandescent / 50W motor (exhaust fan)
- Minimum Load: 2W or 0.33?F X2 capacitor
- Operating Temperature: 10 degreeC - 30 degreeC
- Protection Type: Over heat & over current
- Control Type: Push button / BrilliantSmart app
- Soft start for improved lamp life
- Connection Terminals: 3 x 3mm diameter (7mm?) screw
- Material: Flame retardant ABS for housing
- LED Indicator: Blue
- Plate Compatibility: Slots seamlessly into HPM?; Clipsal? and Vynco? branded wall plates with multiple button head shapes (series 30 type)
- Warranty: 1 year replacement
- WiFi Info: IEEE802.11b/g/n; 2.4GHz
- Mac Encryption; WEP/WAPI/TKIP/AES
- Device Requirements: iOS 8.0 or higher; Android 4.1 or higher
- Standards: AS/NZS 60669-2-1
- IEC 60669-1
Click to view technical specification:
