Single Colour LED Strip Controller 0-1/10V - HCP-71211 - Hav

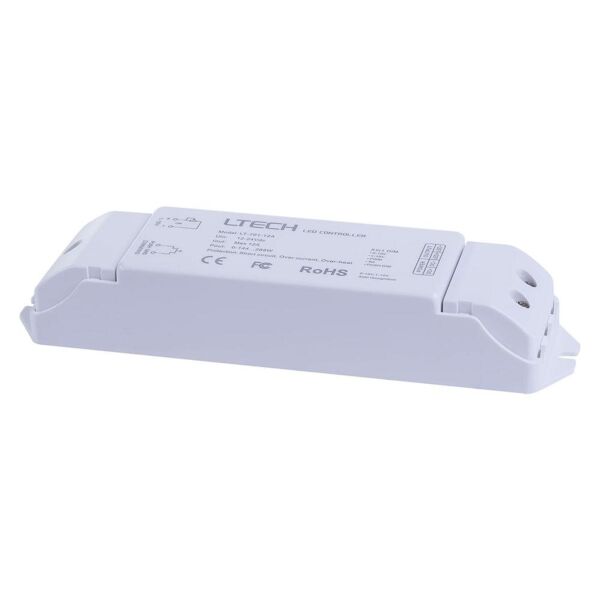

Single Colour LED Strip Controller 0-1/10V - HCP-71211
Availability:
In stock
SKU
HAV-HCP-71211
A LED Driver is an electrical device; used to power a light-emitting diode (LED); that protects LEDs by stabilizing the quantity of incoming electrical voltage and current to make sure they don't surpass the maximum voltage rating.
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.
Without the proper driver; the LED may become too hot and unstable; therefore causing poor performance or failure.
Specifications
- 0-1/10V LED strip controller
- For use with Single Colour LED strip
- Signal input: 0-1/10V
- Signal output: PWM digital dimming
- Dimming range: 0-100%
- IP Rating: IP20
- Input voltage: 24V DC
- No. of channels: 1x 12A
- Maximum Load: 288W
- 5 years replacement warranty
Dimensions
- Length: 160mm
- Width: 43mm
- Height: 30mm
Click to view technical specification:
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.
Without the proper driver; the LED may become too hot and unstable; therefore causing poor performance or failure.
Specifications
- 0-1/10V LED strip controller
- For use with Single Colour LED strip
- Signal input: 0-1/10V
- Signal output: PWM digital dimming
- Dimming range: 0-100%
- IP Rating: IP20
- Input voltage: 24V DC
- No. of channels: 1x 12A
- Maximum Load: 288W
- 5 years replacement warranty
Dimensions
- Length: 160mm
- Width: 43mm
- Height: 30mm
Click to view technical specification:
