Features

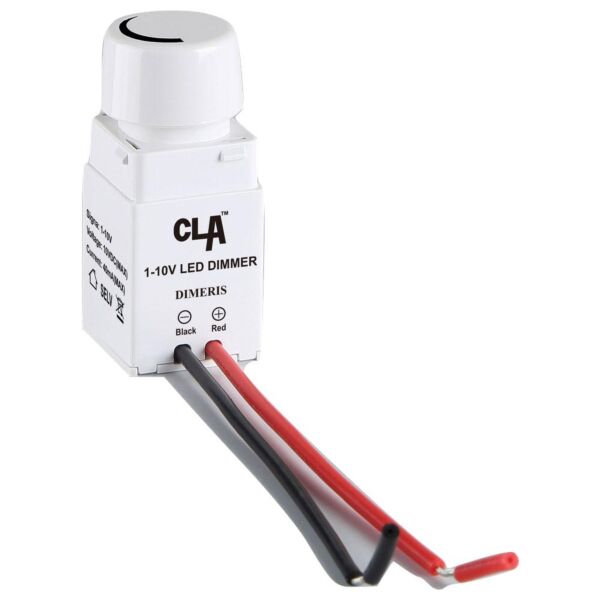

- The 1-10V LED Dimmer is a low cost rotary regulartor for controlling dimmable analogue LED drivers
- Suitable for LED lighting; dimmable electronic ballasts; electronic transformers and 240V halogen and incandescent lamps
- The 1-10V LED Dimmer uses a shunt voltage regulation technique
- Maximum load: 10V/40mA.
- Maximum output cable length: 50m
- Fits Australian wall switches
- Soft start
- IP20 rated
Specifications:
- Input: Voltage (Max.) 10V DC
- Input: Voltage (Min.) 0.5V DC
- Output: Control Current (Max.) 40mA
- Environment:
- Working Temp. -10 degreeC to 80 degreeC; ambient operating at full load
- Working Humidity 20% to 90% RH non-condensing
- Storage Temp. Humidity -200C to 800C; 10% to 90% RH
- Connection: To Dimmable Input Port UL rated; 20AWG for '+' ang '-'
- MTBF 100K Hours min @Ta=25 degreeC
- Compliance with Australian Standard AS/NZS CISPR 15
Dimensions
- Length: 23mm
- Width: 23mm
- Height: 54mm
