Push Button LED Trailing Dimmer - Vela - Cla
was
A$71.87
Special Price
A$65.34

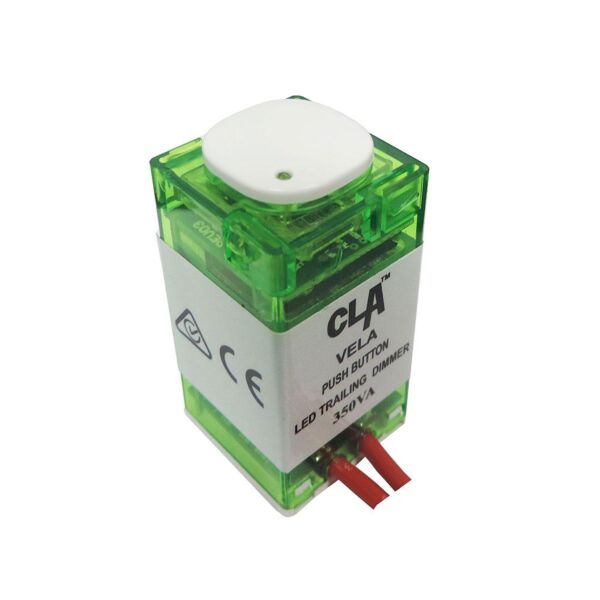

Push Button LED Trailing Dimmer - Vela
Availability:
In stock
SKU
CLA-Vela
- Soft start
- Overload protection & short circuit protection
- Easy to mount in most Australian plates
- Suitable for dimming dimmable LED globes; incandescent globes; high voltage halogen globes; electronic transformers with low voltage halogen globes
- Long press dimming button to dim
- Short press dimming button to on/off
- Comes with 2 face caps round & square edged to suit most Australian plates
- IP rating: IP20
- 3 year replacement warranty
Programming
Minmum brightness setting
- Remove the top cap
- Long press programming button until LED flashes slowly
- Long press dimming button to set level
- Double press dimming button to exit programming mode
Maximum brightness settting
- Remove the top cap
- Long press programming button until LED flashes; short press programming button; until LED starts to flash fast
- Long press dimming button to set level
- Double press dimming button to exit program mode
Specifications
- Nominal Operating Voltage: 220-240V
- Nominal Operating Frequency: 50Hz
- Maximum Load: 350VA
- Minimum Load: 10VA
- Dimming Technique: Trailing Edge Phase Control
- Mounting Centres: 84mm Australian Pattern Plate
- Safety Compliance: AS/NZS 3100; AS/NZS 3133; IEC 60669-2-1
- EMC Compliance: AS/NZS CISPR15; IEC 60669-2-1 (26.1; 26.2);IEC 61000-3-2 (Excepting when used in conjunction with Electronic loads)
Click to view technical specification:
