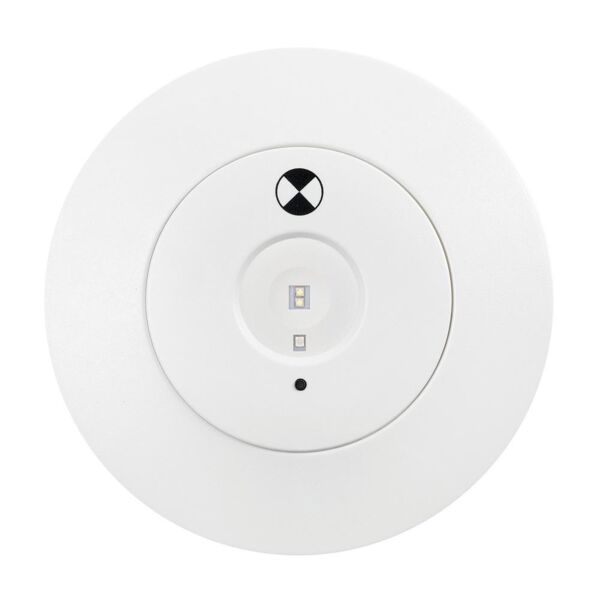

Pathfinder 3W LED Recessed Emergency Downlight White - 19882/05 - Bri

Features
Pathfinder Emergency downlight 3W LED is a general purpose; versatile non-maintained LED emergency luminaire with D40/D40 classification; compliant to AS/NZS2293 for interior use wherever emergency lighting is required.

The LED luminaire with emergency 2-hour battery pack permits self-powered operation during power outage.

Applications
Commercial and interior applications; coastal environment; apartments; shopping centres; hospitality; prisons and hospitals.

Specifications
- Compliant to AS/NZS 2293
- Energy efficient high output 3 watt LED
- 2-Pin flex & plug included
- Injection moulded polycarbonate housing
- Removeable large trim ring included
- D40/D40 classification
- High density storage LiCoO2 batteries
- IP20 rating
- Emergency driver fully tested & compliant with SAA
- 2 Hour duration period
- TA40 - maximum thermal ambient operating temperature
- Charger type: Trickle
- Charger time: 16 Hours
- Charger operation: Continuous

Finishes
- White - 19772/05
- Black - 19882/06

Dimensions
- Height: 24mm
- Diameter: 168mm
- Cut-out: 70mm to 130mm
