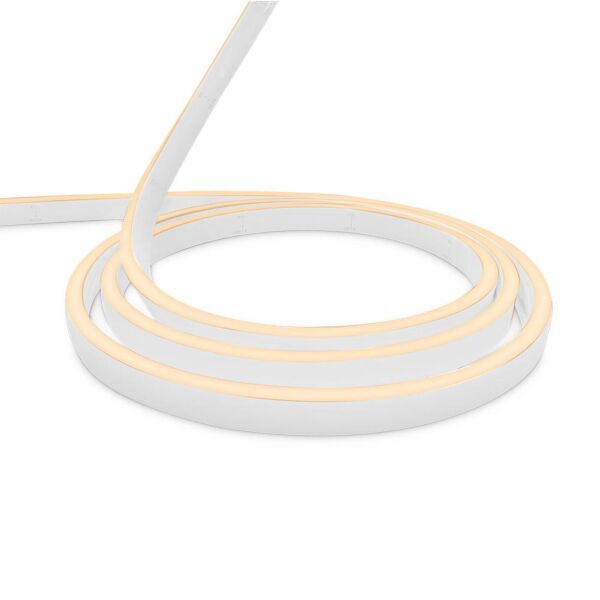

Neon Flex 12W LED IP68 24V DC Dimmable LED Strip Light Warm White - AQS-500-22A12
Availability:
In stock
SKU
AQL-AQS-500-22A12
AQS-500 is encapsulated in multiple silicone channels for full IP68 protection. Use for pool copings; in-pavement channels and exterior wall grazing where substantial moisture and mechanical protection is required.
As with all IP68 products; the ingress protection is determined by the quality of the cable joins and installation.
Multiple silicone encapsulation steps combined with a custom injection molded end-cap process mean that real-world IP68 performance can be expected in depths up to 1M. To ensure IP68 performance; there can be no submerged cable joins at all.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 12W Per Meter
- Colour Temperature: 2200K (Warm White)
- Lumen Output (per Meter): 280 Lumens
- IP Rating: IP68
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 10m
- Max Length (Double Power Feed): 20m
- Cut Interval: 100mm
- Bend Direction: Horizontally
- Minimum Bend Diameter: 120mm
- LED Type: SMD3528
- LED Qty / M: 60 pieces
- Materials: Eco PVC
- Emission Angle: 120 degree
- Operating Temperature: -20 degree to +40 degreeC
- Installation Temperature: 5 degree to +35 degreeC
- Warranty: 3 Year
- Sold Per Meter
Dimensions
- Height: 21mm
- Width: 11.5mm
Click to view technical specification:
As with all IP68 products; the ingress protection is determined by the quality of the cable joins and installation.
Multiple silicone encapsulation steps combined with a custom injection molded end-cap process mean that real-world IP68 performance can be expected in depths up to 1M. To ensure IP68 performance; there can be no submerged cable joins at all.
Specifications
- Input Voltage: 24V DC power supply required (not included)
- Wattage: 12W Per Meter
- Colour Temperature: 2200K (Warm White)
- Lumen Output (per Meter): 280 Lumens
- IP Rating: IP68
- Working Mode: Constant Voltage (PWM) / DMX
- Max Length (Single Power Feed): 10m
- Max Length (Double Power Feed): 20m
- Cut Interval: 100mm
- Bend Direction: Horizontally
- Minimum Bend Diameter: 120mm
- LED Type: SMD3528
- LED Qty / M: 60 pieces
- Materials: Eco PVC
- Emission Angle: 120 degree
- Operating Temperature: -20 degree to +40 degreeC
- Installation Temperature: 5 degree to +35 degreeC
- Warranty: 3 Year
- Sold Per Meter
Dimensions
- Height: 21mm
- Width: 11.5mm
Click to view technical specification:
