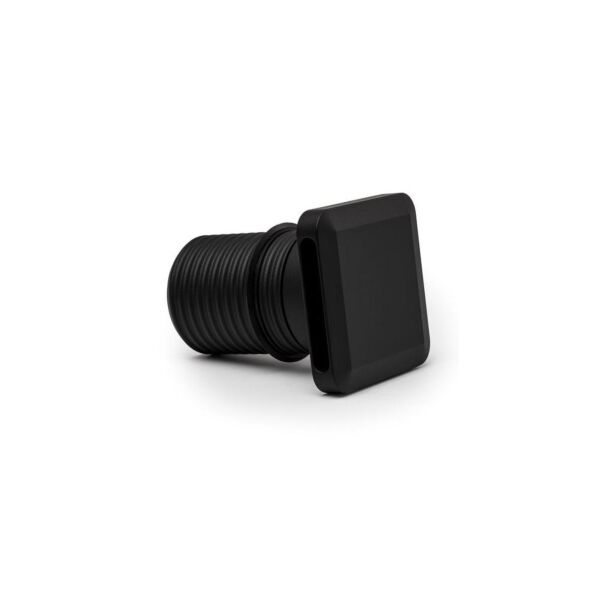

Modux M4 4W Squarelight Wash Black / Warm White
Availability:
In stock
SKU
LXR-M4-4W-SQ-LT-WASH-BLK-WW
Features
The M4 Squarelight Wash is a low-voltage dimmable outdoor feature light that produces a wash distribution 5 degrees below the flange lip in a narrow decorative band.
Can be used to illuminate the wall surface adjacent to the step treads; step treads themselves; above a doorway; or as a path light wayfinder among other applications.
Precision machined in marine grade 316 stainless steel; copper or powdercoated aluminium; the luminaire achieves IP68 water ingress rating for piece of mind. The Cree 4 watt max LED can be easily replaced if required.
The optic is glass and there is an allowance around the optic to allow for pressure jet washing and flushing.
Specifications
- Input Current: 700mA
- Power: 4 Watt
- Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 3000K (Warm White)
- IP Rating: IP68
- Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
- Driver: Remote constant current driver required or LuxR Integral 12V AC driver
Dimensions
- Width: 53mm x 53mm
- Cutout: 43.5mm
Click to view technical specification:
The M4 Squarelight Wash is a low-voltage dimmable outdoor feature light that produces a wash distribution 5 degrees below the flange lip in a narrow decorative band.
Can be used to illuminate the wall surface adjacent to the step treads; step treads themselves; above a doorway; or as a path light wayfinder among other applications.
Precision machined in marine grade 316 stainless steel; copper or powdercoated aluminium; the luminaire achieves IP68 water ingress rating for piece of mind. The Cree 4 watt max LED can be easily replaced if required.
The optic is glass and there is an allowance around the optic to allow for pressure jet washing and flushing.
Specifications
- Input Current: 700mA
- Power: 4 Watt
- Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 3000K (Warm White)
- IP Rating: IP68
- Light Engine: Plug-in dimmable module equipped with Cree XT-E LED
- Driver: Remote constant current driver required or LuxR Integral 12V AC driver
Dimensions
- Width: 53mm x 53mm
- Cutout: 43.5mm
Click to view technical specification:
