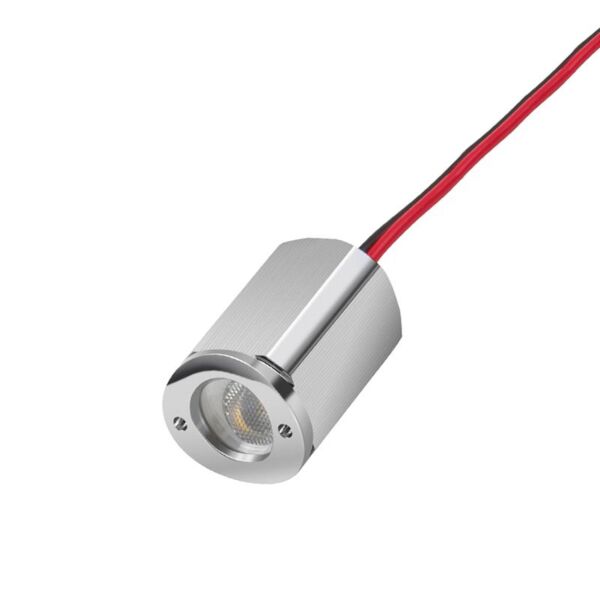

M20 handrail light NU143-1022 - Cti

Please note this product may subject to a lead time of 6 - 8 weeks if it is not in stock
This product may subject to Minimum Order Qty (MOQ)
Dimensions： φ20*30mm
Input voltage： 24V DC
IP rating： IP67/IP68
Working Temperature:： -40~+45 ℃
Single LED handrail light; suit for standard
handrail made by stainless steel and aluminum.
Different colors from 2700- 6500K and blue for LEDs are
available; IP67 waterproof.
Working Temperature:-40℃~+45
Suit for Standard Ø57mm handrail wall thickness 2mm for a M20 hole.
3M waterproof internal connectors.
Can be driven by 350mA/500mA Constant current or 12V/24V LED power supply
Aluminum anodized or stainless steel housing.
Customized sizes; shape and beam angle on request

suit for class 2 power unit; maximum connected power not more than 100W
