Lyra 9W 240V Dali Dimmable LED COB 60 deg Module / Quinto - HCP-809024 - Hav
Lyra 9W 240V Dali Dimmable LED COB 60 deg Module / Quinto - HCP-809024
Availability:
In stock
SKU
HAV-HCP-809024

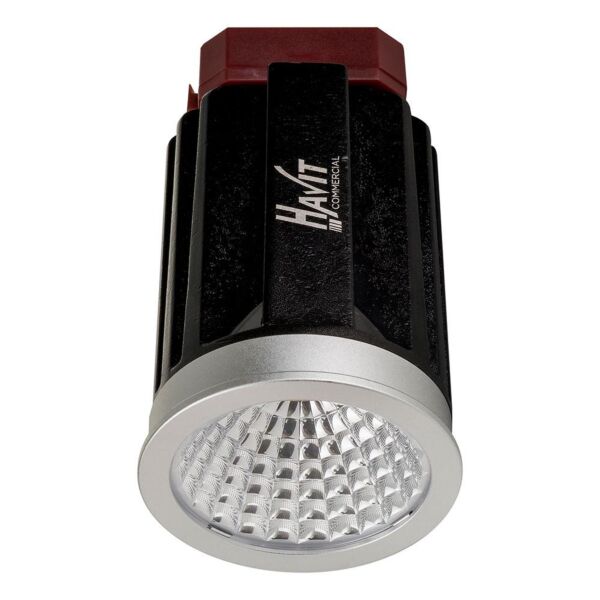

The Lyra Quinto series are a plug and play LED lamp module and LED driver set.
They are the perfect solution for residential homes to commercial projects such as hotels; clubs; pubs and bars.
Designed not only as a replacement for traditional halogen lamps in most applications; but also as a replaceable LED lamp and driver set for a range of click in frames; as a complete downlight solution.
For retrofit; it's as easy as removing the standard MR16 halogen lamp and transformer and replacing it with the Quinto lamp and LED driver. It suits most MR16 downlight frames; depending on height.
This module comes complete with a standard 60 deg. Optional reflector style lens with a choice of 15 deg; 28 deg or 40 deg beam angle effects to suit ceiling heights or lighting effects are available.
With the choice of 2700K; 3000K; 4000K; 5000K and 5700K colour temperature options to suit the desired light appearance.
Complete with Dali dimmable LED driver and flex and plug. Backed by our Five Year Replacement Warranty.
Specifications
- Input Voltage: 240V
- Wattage: 9W
- Colour Temperature: 2700K / 3000K / 4000K / 5000K / 5700K
- Lumens: 647 / 653 / 734 / 750 / 769
- Beam Angle: 60 deg (Optional 15 deg / 28 deg / 40 deg reflectors available)
- Dimmable: Dali Dimming
- CRI: ?90
- IP rating: IP44
- Warranty Period: 5Y
- Warranty Type: Replacement
Dimensions
- Height: 80.3mm
- Diameter: 49.8mm
Click to view technical specification:
They are the perfect solution for residential homes to commercial projects such as hotels; clubs; pubs and bars.
Designed not only as a replacement for traditional halogen lamps in most applications; but also as a replaceable LED lamp and driver set for a range of click in frames; as a complete downlight solution.
For retrofit; it's as easy as removing the standard MR16 halogen lamp and transformer and replacing it with the Quinto lamp and LED driver. It suits most MR16 downlight frames; depending on height.
This module comes complete with a standard 60 deg. Optional reflector style lens with a choice of 15 deg; 28 deg or 40 deg beam angle effects to suit ceiling heights or lighting effects are available.
With the choice of 2700K; 3000K; 4000K; 5000K and 5700K colour temperature options to suit the desired light appearance.
Complete with Dali dimmable LED driver and flex and plug. Backed by our Five Year Replacement Warranty.
Specifications
- Input Voltage: 240V
- Wattage: 9W
- Colour Temperature: 2700K / 3000K / 4000K / 5000K / 5700K
- Lumens: 647 / 653 / 734 / 750 / 769
- Beam Angle: 60 deg (Optional 15 deg / 28 deg / 40 deg reflectors available)
- Dimmable: Dali Dimming
- CRI: ?90
- IP rating: IP44
- Warranty Period: 5Y
- Warranty Type: Replacement
Dimensions
- Height: 80.3mm
- Diameter: 49.8mm
Click to view technical specification:
