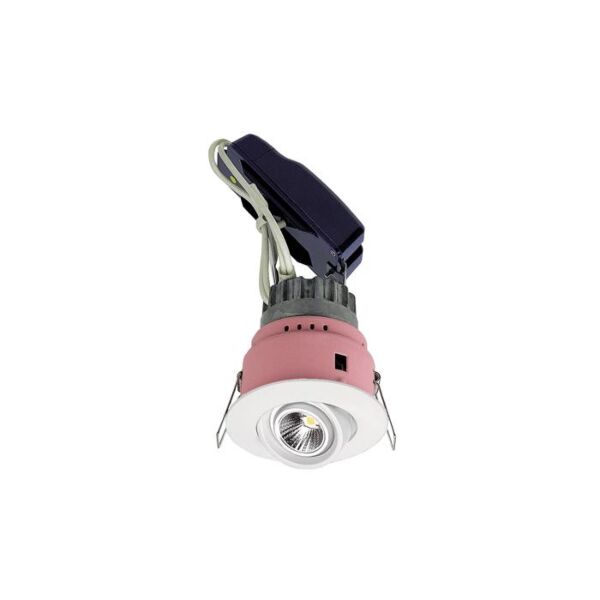

Fire Rated 8W LED Downlight 60 Minutes White / Warm White - LDLB90-FIRE60 - Asu

- Fire rated to 60/60/60 minutes
- Engineered for fire safety and energy efficiency- sets the industry standard for downlight safety
- Thermal cut-off and auto reset function for protection against misuse and overloading.
- 6watt LED bulb comparable to 50watt halogen downlight
- Reflector bulb designed to give uniform light spread with no hot spots or demarcation lines in light beam
- 480 lumens; CRI (RA) 82
- Beam angle 38? degree
- Integral driver for easy installation
- Aluminium die cast face
- Both lamp and downlight have heat sink technology for effective thermal management
- Tiltable to 40? and fully rotatable
- Downlight Classification = CA135
- 5 year transformer warranty
- Acoustic rating: for acoustic STC55 Ceilings
- Space 1.6m minimum. For acoustic (RW) STC57 and 58; space 2.5m minimum.

Specifications
- Input Voltage: 240V
- Lamp Type: LED
- Wattage: 6W
- Colour Temperature: 3000K (Warm White)
- Lumens: 480 Lumens
- Beam: 38 degree
- Dimmable: No
- CRI>82
- Double Insulated
- Class: CA135
- Air / Moisture Transfer: Closed
- Insulation: Side Abutted

Dimensions
- Diameter: 105mm
- Cutout: 90mm
- Cavity Depth: 210mm
- Side Clearance: 50mm
