Dimmable 25W LED 500 - 1050mA Driver - LCM-25 - Hza
Dimmable 25W LED 500 - 1050mA Driver - LCM-25
Availability:
In stock
SKU
HZA-LCM-25

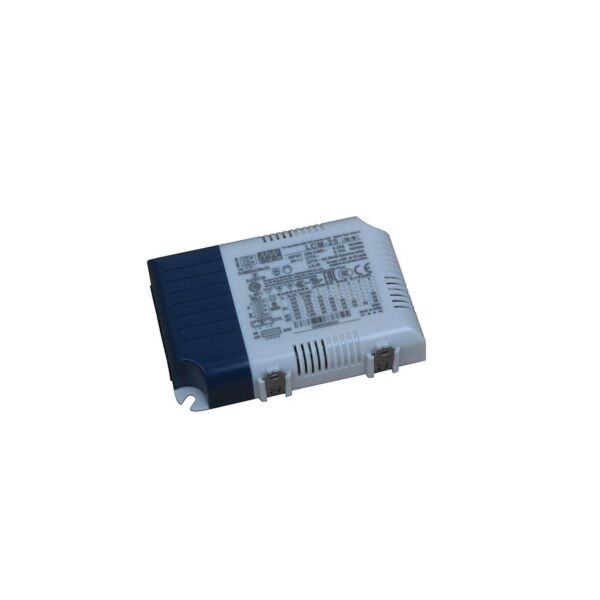

The Hunza LCM 25/EN is a 50 Watt electronic; constant current; remote driver available to power Hunza series version PureLED fixtures.
It includes a DIP-SWITCH control system that enables the unit to be set at a range of current outputs from 500mA to 1050mA.
1-10v and Dali dimmable. For exterior use; it is highly recommended to install this in a weatherproof box; available as an option from Hunza. The PC-17-02 weatherproof box is a requirement for UL compliance.
When this driver is used as a remote power supply; Series Wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.
Key Specifications
- Input Voltage: 180-295Vac 50-60Hz; 254-417Vdc
- Output Voltage: 2V-90V dc (depending on DIP-SWITCH setting)
- Output Current: 500 - 1050mA (depending on DIP-SWITCH setting)
- Wattage: 25W (depending on DIP-SWITCH setting)
- Temperature range: -25...+50oC; max 90oC
- Driver Weight: 0.15kg (5.3oz)
- Standards: IP20; RCM (C-Tick); EN; CE; CSA Recognized
- Ordering Code: LCM 60/EN
It includes a DIP-SWITCH control system that enables the unit to be set at a range of current outputs from 500mA to 1050mA.
1-10v and Dali dimmable. For exterior use; it is highly recommended to install this in a weatherproof box; available as an option from Hunza. The PC-17-02 weatherproof box is a requirement for UL compliance.
When this driver is used as a remote power supply; Series Wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.
Key Specifications
- Input Voltage: 180-295Vac 50-60Hz; 254-417Vdc
- Output Voltage: 2V-90V dc (depending on DIP-SWITCH setting)
- Output Current: 500 - 1050mA (depending on DIP-SWITCH setting)
- Wattage: 25W (depending on DIP-SWITCH setting)
- Temperature range: -25...+50oC; max 90oC
- Driver Weight: 0.15kg (5.3oz)
- Standards: IP20; RCM (C-Tick); EN; CE; CSA Recognized
- Ordering Code: LCM 60/EN
