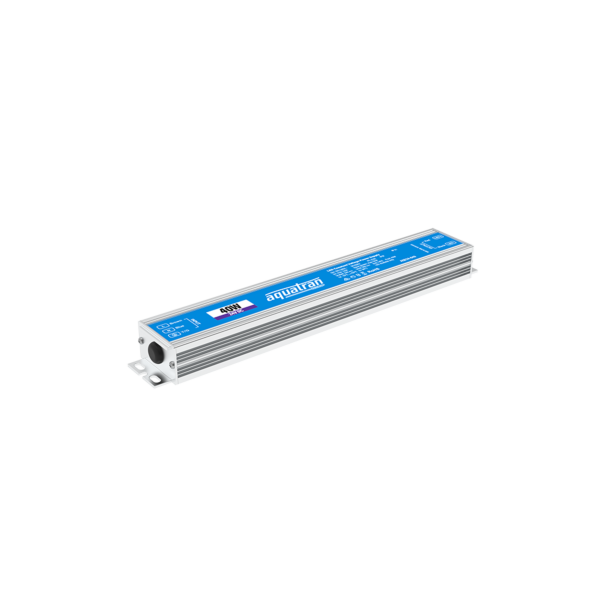

Aquatran Weatherproof 40W 24V DC LED Driver IP67 - AQD24-040 - Aql
was
A$109.35
Special Price
A$99.41
Aquatran Weatherproof 40W 24V DC LED Driver IP67 - AQD24-040
Availability:
In stock
SKU
AQL-AQD24-040
A LED Driver is an electrical device; used to power a light-emitting diode (LED); that protects LEDs by stabilizing the quantity of incoming electrical voltage and current to make sure they don't surpass the maximum voltage rating.
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.
Without the proper driver; the LED may become too hot and unstable; therefore causing poor performance or failure.
The AQD range of IP67 24V DC power supplies is suitable for a wide range of constant-voltage 24V LED systems; including the Aqualux Lumena System and AQS Strip lighting.
Specifications
- Product Code: AQD24
- Watt: 40W
- Input Voltage: 100-240V AC / 50-60Hz
- Output Voltage: 24V DC
- Ip Rating: IP67
- Approvals: RCM / SAA
- Construction: Epoxy Filled Extruded Aluminium
- Input Cable: 1.2m Flex & Plug
- Output Cable: 500mm
- Operating Temp: -25c ~ +50c
- Warranty: 5 Years
Click to view technical specification:
Complex current source circuits require a LED driver when driving high-power LEDs for illumination to achieve correct current regulation.
A LED driver responds to the changing needs of the LED; or LED circuit; by providing a constant quantity of power to the LED as its electrical properties change with temperature.
Without the proper driver; the LED may become too hot and unstable; therefore causing poor performance or failure.
The AQD range of IP67 24V DC power supplies is suitable for a wide range of constant-voltage 24V LED systems; including the Aqualux Lumena System and AQS Strip lighting.
Specifications
- Product Code: AQD24
- Watt: 40W
- Input Voltage: 100-240V AC / 50-60Hz
- Output Voltage: 24V DC
- Ip Rating: IP67
- Approvals: RCM / SAA
- Construction: Epoxy Filled Extruded Aluminium
- Input Cable: 1.2m Flex & Plug
- Output Cable: 500mm
- Operating Temp: -25c ~ +50c
- Warranty: 5 Years
Click to view technical specification:
