Aquatran 300W 24V AC Weatherproof LED Driver IP67 - AQO24-300 - Aql
was
A$219.35
Special Price
A$199.41

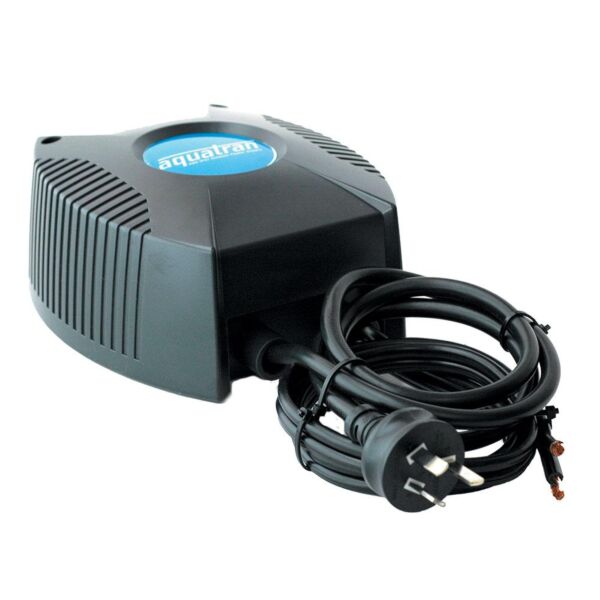

Aquatran 300W 24V AC Weatherproof LED Driver IP67 - AQO24-300
Availability:
In stock
SKU
AQL-AQO24-300
The AQO is a magentic; toroidal based power supply with integrated safety features.
Suitable for a wide range of applications wherever 12V or 24V AC SELV power is required.
The Aquatran AQO range of outdoor power supplies is the leader in fully weatherproof low-voltage power solutions.
Designed and engineered in Australia; the AQO range is ideal for a variety of outdoor low-voltage power applications.
Rated to IP67 for complete protection from the elements; the AQO will operate across Australia in all types of climates and environments.
Perfect for all low-voltage outdoor power requirements where performance; durability and aesthetics are all important
Specifications
- Input Voltage: 230V AC / 50Hz
- Output Voltage: 24V AC
- Wattage: 300W
- IP Rating: IP67
- Construction: Epoxy Filled Extruded Aluminium
- Input Cable: 1.8m Flex & Plug
- Output Cable: 1m 8mm (Squared Symbol)
- Operating Temp: -20c ~ +40c
- Warranty: 5 Years
Installation Guidelines
- If hard wired into mains; unit must be installed by a qualifi ed electrician and in accordance with local wiring rules.
- If unit is installed in an equipment cavity; adequate air flow must be provided.
- For mounting; use 4.8mm x 50mm self-tapping screws (or equivalent) and ensure that mounting surface can support unit weight.
- For best performance and longest lamp life; load the power supply at approximately 80% of it's stated rating.
- The input cable on the unit cannot be replaced; If it is damaged; the unit must be scrapped.
Dimensions
- Height: 112mm
- Width: 65mm
- Length: 133mm
Click to view technical specification:
Suitable for a wide range of applications wherever 12V or 24V AC SELV power is required.
The Aquatran AQO range of outdoor power supplies is the leader in fully weatherproof low-voltage power solutions.
Designed and engineered in Australia; the AQO range is ideal for a variety of outdoor low-voltage power applications.
Rated to IP67 for complete protection from the elements; the AQO will operate across Australia in all types of climates and environments.
Perfect for all low-voltage outdoor power requirements where performance; durability and aesthetics are all important
Specifications
- Input Voltage: 230V AC / 50Hz
- Output Voltage: 24V AC
- Wattage: 300W
- IP Rating: IP67
- Construction: Epoxy Filled Extruded Aluminium
- Input Cable: 1.8m Flex & Plug
- Output Cable: 1m 8mm (Squared Symbol)
- Operating Temp: -20c ~ +40c
- Warranty: 5 Years
Installation Guidelines
- If hard wired into mains; unit must be installed by a qualifi ed electrician and in accordance with local wiring rules.
- If unit is installed in an equipment cavity; adequate air flow must be provided.
- For mounting; use 4.8mm x 50mm self-tapping screws (or equivalent) and ensure that mounting surface can support unit weight.
- For best performance and longest lamp life; load the power supply at approximately 80% of it's stated rating.
- The input cable on the unit cannot be replaced; If it is damaged; the unit must be scrapped.
Dimensions
- Height: 112mm
- Width: 65mm
- Length: 133mm
Click to view technical specification:
