Adjustable 3 Wire Infrared Motion Sensor Black - SENS008 - Cla
was
A$62.07
Special Price
A$56.43
Adjustable 3 Wire Infrared Motion Sensor Black - SENS008
Availability:
In stock
SKU
CLA-SENS008

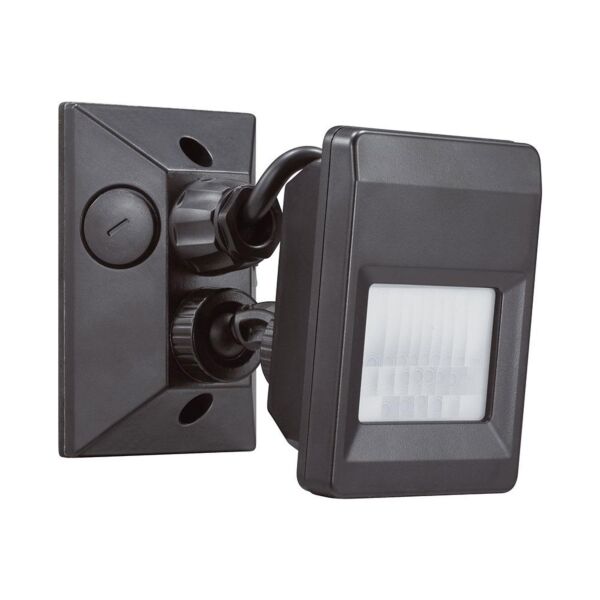

The Adjustable Infrared Motion Sensors 120 degree Security Sensor is suitable for installations on the wall or ceiling with Adjustable settings.
Specifications
- Mounting Type: Surface Mounted
- Input Voltage: 220-240V 50/60Hz
- Power consumption: approx. 0.5W
- Rated Load: 2000W Halogen / 1000W CFL & 1000W LED
- IP66 Rated
- Detection Range: 120 degree
- Detection Distance: 12m Max (<24 degreeC)
- Motion Detection Speed: 0.6-1.5m/s
- Warranty : 5 Year replacement
- Time delay: Min.10sec+3sec; Max.30min+2min (restarts from last movement)
- SENS dial for adjusting Detection Distance: 120 degree Max 12m at 24 degreeC
- Working Temp: -20 to 40 degreeC
- Ambient Light: 3-2000Lux
- Ambient Temp: -20 to 40 degreeC
- Working Humidity: <93%RH
- Power Consumption approx. 0.5W
- Installation Height: 1.8-2.5m
- Housing Material: PC
- UV resistant
- 3 wire
- Day/Night recognition
- Manual override
(1) To operate as a light only (i.e. override sensor); turn power off for 3 seconds and then back on
(2) To reverse the override function (i.e. re-introduce the use of the sensor); turn power off for 10 seconds and then back on
Dimensions
- Backplate: 115mm x 73mm
- Facia: 106.6mm x 76.4mm
- Projection: 146mm
Click to view technical specification:
Specifications
- Mounting Type: Surface Mounted
- Input Voltage: 220-240V 50/60Hz
- Power consumption: approx. 0.5W
- Rated Load: 2000W Halogen / 1000W CFL & 1000W LED
- IP66 Rated
- Detection Range: 120 degree
- Detection Distance: 12m Max (<24 degreeC)
- Motion Detection Speed: 0.6-1.5m/s
- Warranty : 5 Year replacement
- Time delay: Min.10sec+3sec; Max.30min+2min (restarts from last movement)
- SENS dial for adjusting Detection Distance: 120 degree Max 12m at 24 degreeC
- Working Temp: -20 to 40 degreeC
- Ambient Light: 3-2000Lux
- Ambient Temp: -20 to 40 degreeC
- Working Humidity: <93%RH
- Power Consumption approx. 0.5W
- Installation Height: 1.8-2.5m
- Housing Material: PC
- UV resistant
- 3 wire
- Day/Night recognition
- Manual override
(1) To operate as a light only (i.e. override sensor); turn power off for 3 seconds and then back on
(2) To reverse the override function (i.e. re-introduce the use of the sensor); turn power off for 10 seconds and then back on
Dimensions
- Backplate: 115mm x 73mm
- Facia: 106.6mm x 76.4mm
- Projection: 146mm
