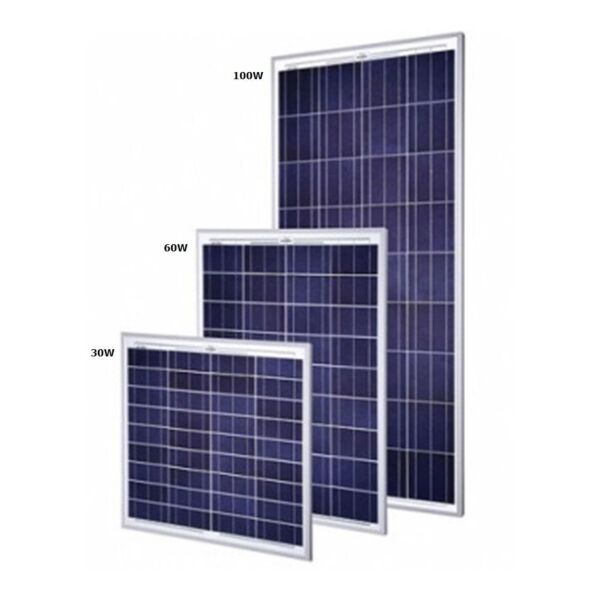

30W Solar Panel - SLDSP30
Availability:
In stock
SKU
SLD-SLDSP30
Polycrystalline solar panel with fold out adjustable legs to suit solar powered commercial flood lights model numbers:
- SLDFL10W-WW
- SLDFL10W-CW
Specifications
- Power Tolerance - 0 ~ +3%
- Optimum operating voltage (Vmp) - 18.2V
- Optimum operating current (Imp) - 1.65A
- Open circuit voltage (Voc) - 22.2V
- Short circuit current (Isc) - 1.80A
- Maximum power at STC (Pmax) - 30W
- Maximum series Fuse - 15A
- Maximum System Voltage - 1000V DC
- Application class - A class
- Operating Temperature: -40oC to +85 oC
- IP Rating: IP65
Dimensions
- Height: 645mm
- Width: 350mm
- Depth: 25mm
- Weight: 2.8Kg
- SLDFL10W-WW
- SLDFL10W-CW
Specifications
- Power Tolerance - 0 ~ +3%
- Optimum operating voltage (Vmp) - 18.2V
- Optimum operating current (Imp) - 1.65A
- Open circuit voltage (Voc) - 22.2V
- Short circuit current (Isc) - 1.80A
- Maximum power at STC (Pmax) - 30W
- Maximum series Fuse - 15A
- Maximum System Voltage - 1000V DC
- Application class - A class
- Operating Temperature: -40oC to +85 oC
- IP Rating: IP65
Dimensions
- Height: 645mm
- Width: 350mm
- Depth: 25mm
- Weight: 2.8Kg
