100W Solar Panel - SLDSP100 - Sld
was
A$392.81
Special Price
A$357.10
100W Solar Panel - SLDSP100
Availability:
In stock
SKU
SLD-SLDSP100

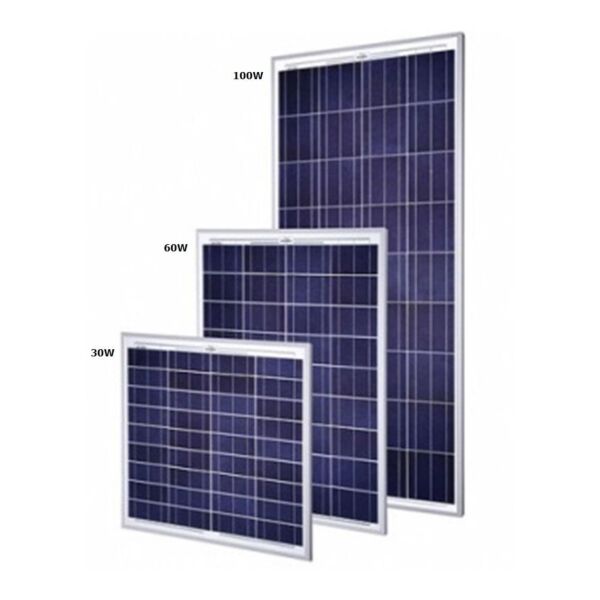

Polycrystalline solar panel with fold out adjustable legs to suit solar powered commercial flood lights model numbers:
- SLDFL10W-CW
- SLDFL10W-WW
- SLDFL30W-CW
- SLDFL30W-WW
- SLDFL30W-RGB
- SLDFL50W-CW
- SLDBTL24W
Specifications
- Power Tolerance - 0 ~ +3%
- Optimum operating voltage (Vmp) - 18.2V
- Optimum operating current (Imp) - 5.56
- Open circuit voltage (Voc) - 22.2V
- Short circuit current (Isc) - 6.06A
- Maximum power at STC (Pmax) - 100W
- Maximum series Fuse - 15A
- Maximum System Voltage - 1000V DC
- Application class - A class
- Operating Temperature: -40oC to +85 oC
- IP Rating: IP65
Dimensions
- Height: 1005mm
- Width: 670mm
- Depth: 30mm
- Weight: 8.0Kg
- SLDFL10W-CW
- SLDFL10W-WW
- SLDFL30W-CW
- SLDFL30W-WW
- SLDFL30W-RGB
- SLDFL50W-CW
- SLDBTL24W
Specifications
- Power Tolerance - 0 ~ +3%
- Optimum operating voltage (Vmp) - 18.2V
- Optimum operating current (Imp) - 5.56
- Open circuit voltage (Voc) - 22.2V
- Short circuit current (Isc) - 6.06A
- Maximum power at STC (Pmax) - 100W
- Maximum series Fuse - 15A
- Maximum System Voltage - 1000V DC
- Application class - A class
- Operating Temperature: -40oC to +85 oC
- IP Rating: IP65
Dimensions
- Height: 1005mm
- Width: 670mm
- Depth: 30mm
- Weight: 8.0Kg
